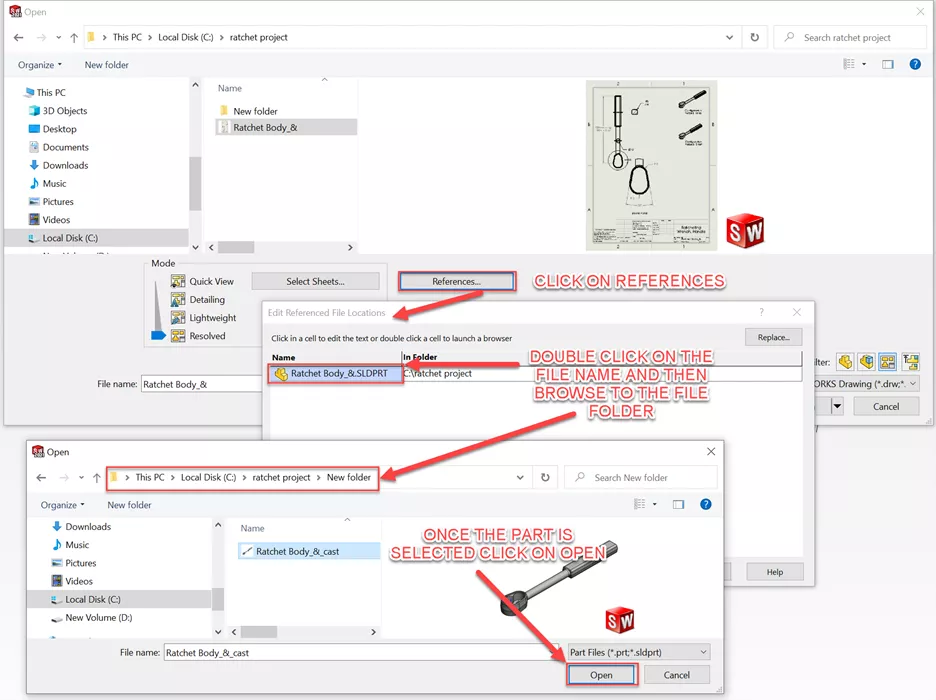

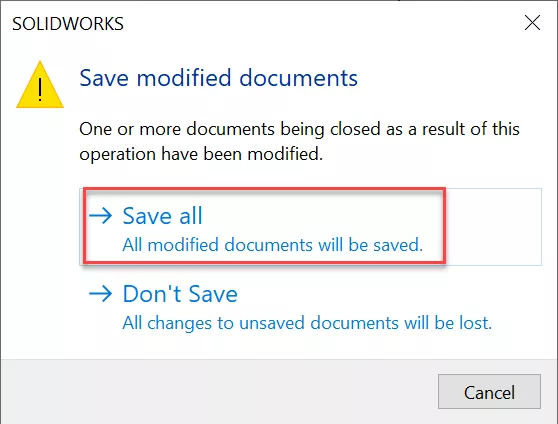

How To Repair Broken References In Solidworks Goengineer In this tutorial, we explain how to repair broken references in solidworks drawings and assemblies. learn more here. The update reference dialog box opens, listing all references and identifying those that are missing. select a reference to replace and click edit > replace file . in the replace file dialog box, browse to the file that will replace the broken reference.

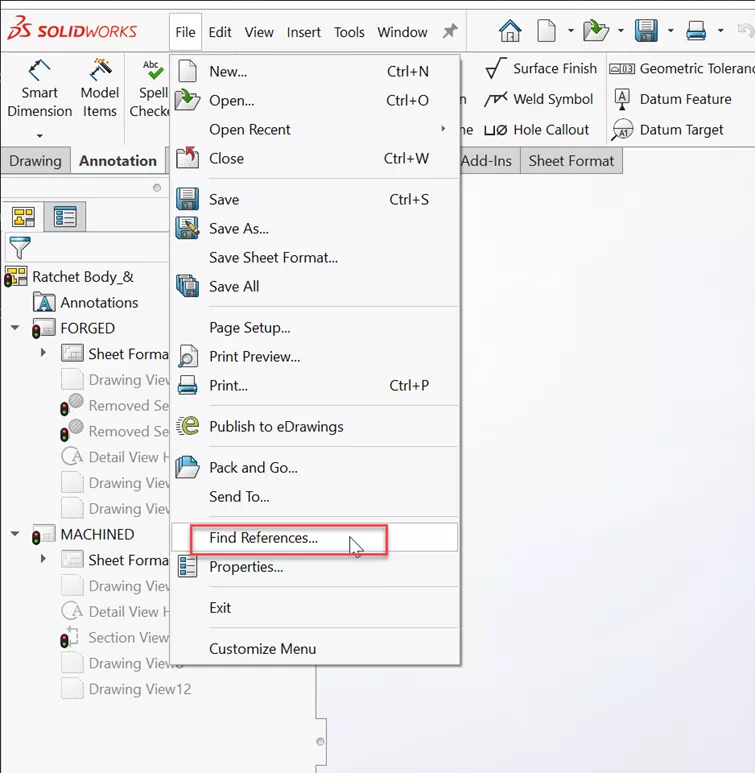

How To Repair Broken References In Solidworks Goengineer Quicktips video presented by robert murdock of goengineer ( goengineer ). … more. learn how to repair broken references in your assembly and drawing files in solidworks. this. Select a file with a broken reference. click tools > update references . the update reference dialog box opens, listing all references and identifying those that are missing. Like i mentioned above it sounds like the in contexted reference has become lost. the only way to fix it is to find it and repair it. if you have not been doing you this need to start using it often and that is ctrl q and i do it couple of times to make sure everything updates. References allow you to define new geometry in relation to existing geometry, but missing and broken references reduce a model’s stability. learn how to repair missing sketch references.
How To Repair Broken References In Solidworks Goengineer Like i mentioned above it sounds like the in contexted reference has become lost. the only way to fix it is to find it and repair it. if you have not been doing you this need to start using it often and that is ctrl q and i do it couple of times to make sure everything updates. References allow you to define new geometry in relation to existing geometry, but missing and broken references reduce a model’s stability. learn how to repair missing sketch references. How to update references this is a tricky task that sometimes occurs when you’re adding files to the vault from another location, maybe files from a vendor, maybe an assembly from a vend more. In this week's episode lennart will show you how to work with broken references in #solidworks. a broken reference is usually marked as a x. this indicates that the #reference. References allow you to define new geometry in relation to existing geometry, but missing and broken references reduce a model’s stability. learn how to repair missing sketch references with the edit sketch plane command. We often see that references will be broken from time to time and here’s how to fix that. so here i have an assembly. i made some updates outside of the vault and then brought in the assembly.
How To Repair Broken References In Solidworks Goengineer How to update references this is a tricky task that sometimes occurs when you’re adding files to the vault from another location, maybe files from a vendor, maybe an assembly from a vend more. In this week's episode lennart will show you how to work with broken references in #solidworks. a broken reference is usually marked as a x. this indicates that the #reference. References allow you to define new geometry in relation to existing geometry, but missing and broken references reduce a model’s stability. learn how to repair missing sketch references with the edit sketch plane command. We often see that references will be broken from time to time and here’s how to fix that. so here i have an assembly. i made some updates outside of the vault and then brought in the assembly.
How To Repair Broken References In Solidworks Goengineer References allow you to define new geometry in relation to existing geometry, but missing and broken references reduce a model’s stability. learn how to repair missing sketch references with the edit sketch plane command. We often see that references will be broken from time to time and here’s how to fix that. so here i have an assembly. i made some updates outside of the vault and then brought in the assembly.
