Solidworks Mbd Template Editor Adding Custom Properties Mbd template editor – adding custom properties so you’ve added custom properties to your part or assembly in solidworks and now you want to bring those custom properties into your mbd templates for creating 3d pdfs. On the custom and the configuration properties tabs in the properties dialog box, you can: specify custom properties for the active part, assembly, or drawing document. apply custom properties to specific configurations in the active part or assembly document.
Solidworks Mbd Template Editor Adding Custom Properties This article walks through creating and using custom 3d pdf templates by modifying default templates included with solidworks mbd. There are two reliable methods of opening previously saved templates: at the top beside the “options” cog is the “file properties” icon. in this new window there are three tabs at the top: summary, custom and configuration specific. under the custom tab is where we are going to do add solidworks part template file properties:. If we want add, edit, delete or change the position of the custom properties list by click edit list on the top right corner for the properties window. Solidworks mbd provides a 3d pdf template editor as shown in figure 5 to customize templates for various kinds of documents. document properties can be mapped from solidworks to 3d pdf. bom holders can be placed on templates to extract bom table details from solidworks.

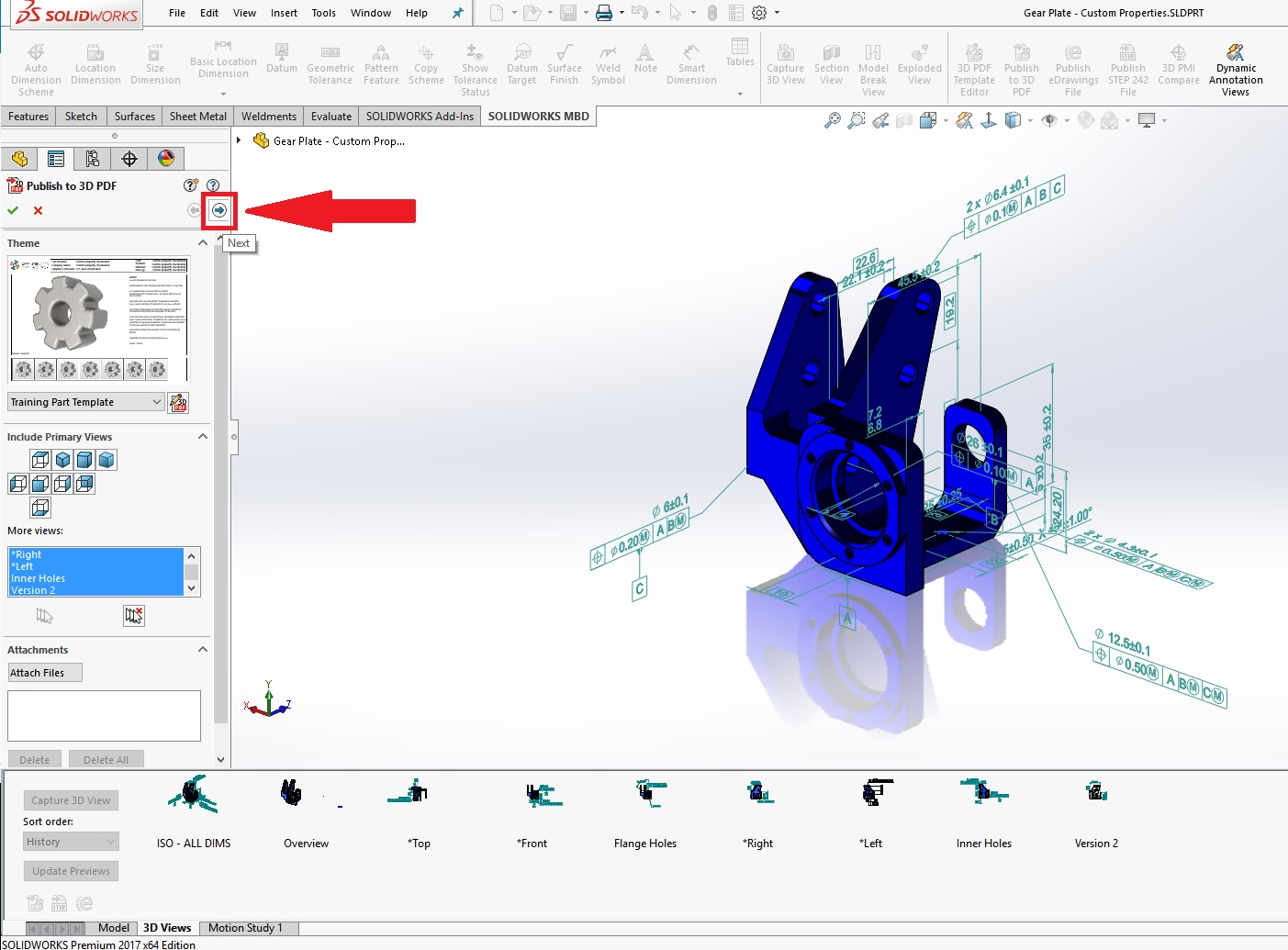

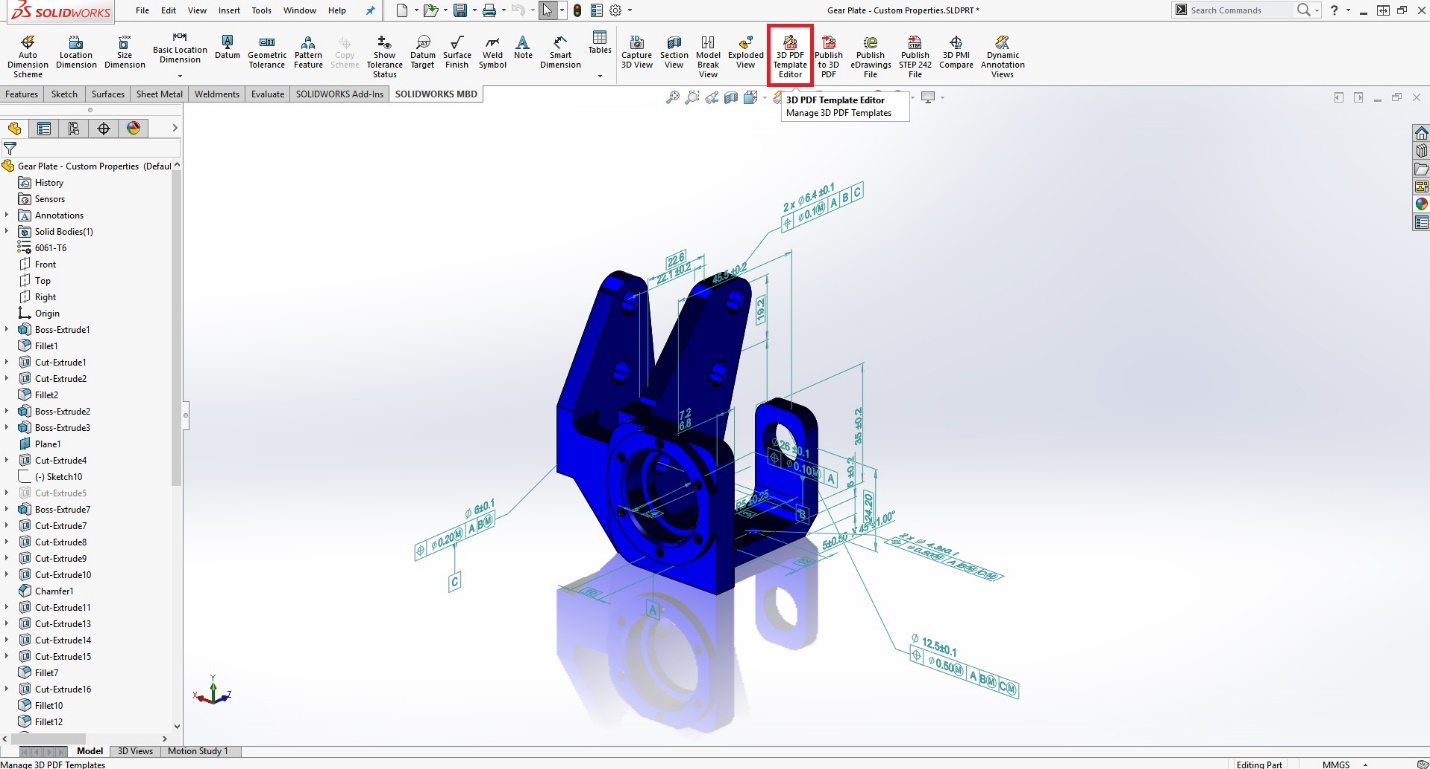

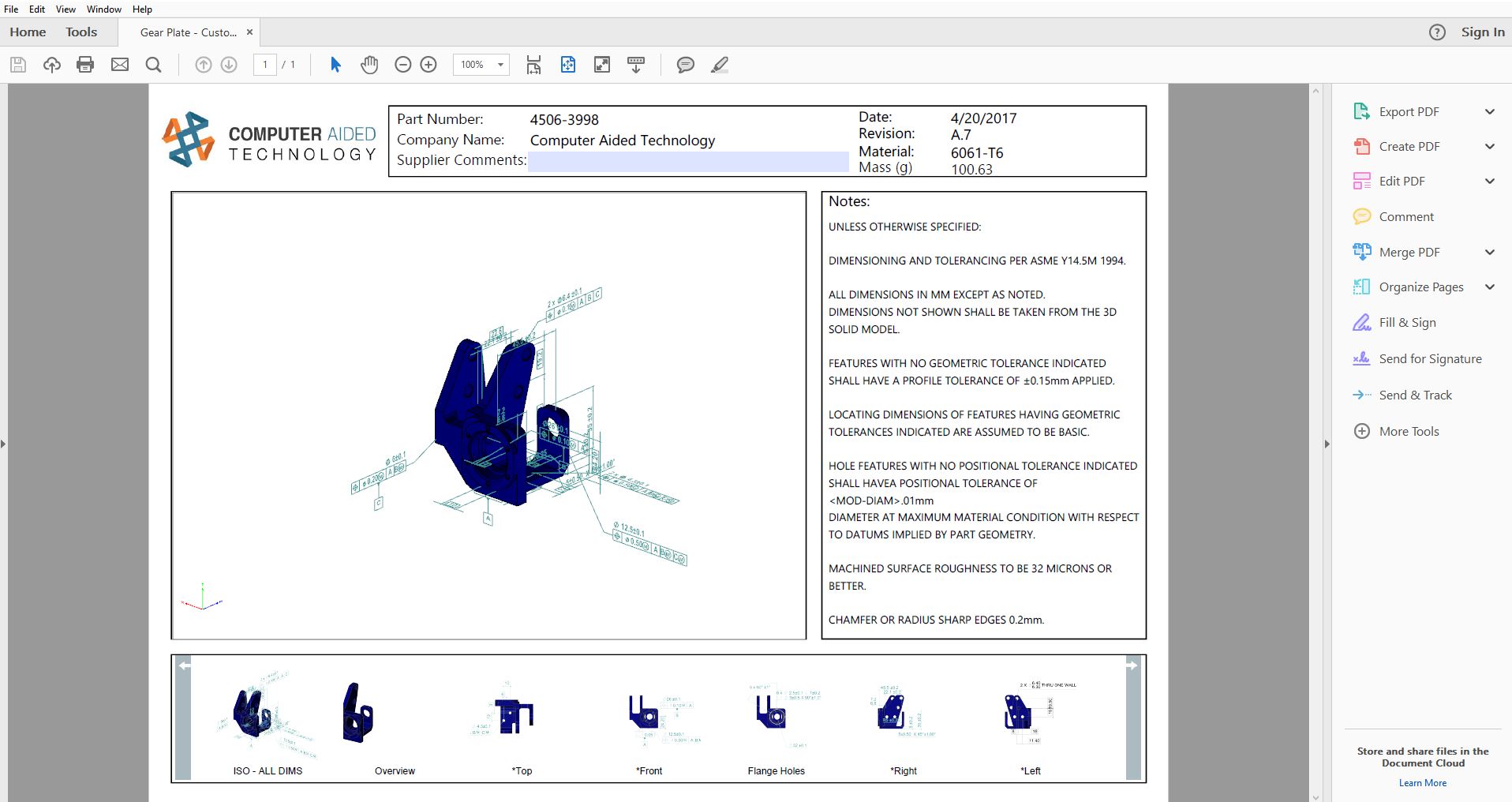

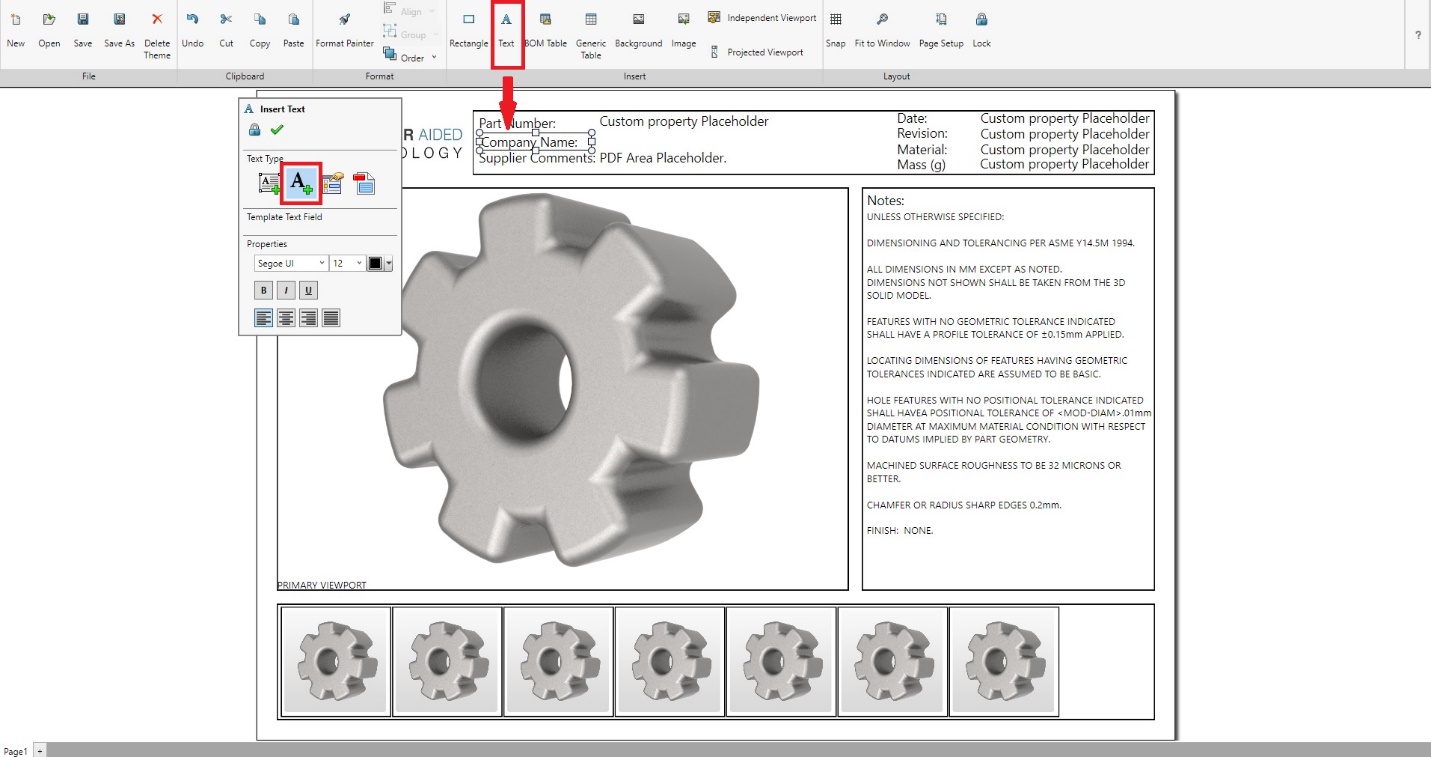

Solidworks Mbd Template Editor Adding Custom Properties If we want add, edit, delete or change the position of the custom properties list by click edit list on the top right corner for the properties window. Solidworks mbd provides a 3d pdf template editor as shown in figure 5 to customize templates for various kinds of documents. document properties can be mapped from solidworks to 3d pdf. bom holders can be placed on templates to extract bom table details from solidworks. In the solidworks 3d pdf template editor, click text . click to place the text block on the page. in the propertymanager, click custom property field . a custom property placeholder appears on the template. in field name, type a name. To edit custom properties: you can also edit the text file that contains the properties using any text editor. the text file is. Learn how to add custom properties to the default list manually and automatically with the custom property text file. In this video, i’ll be walking you through the custom property tab builder and show you that with just a few clicks, you can save time and streamline your project designs going forward.
Solidworks Mbd Template Editor Adding Custom Properties In the solidworks 3d pdf template editor, click text . click to place the text block on the page. in the propertymanager, click custom property field . a custom property placeholder appears on the template. in field name, type a name. To edit custom properties: you can also edit the text file that contains the properties using any text editor. the text file is. Learn how to add custom properties to the default list manually and automatically with the custom property text file. In this video, i’ll be walking you through the custom property tab builder and show you that with just a few clicks, you can save time and streamline your project designs going forward.
Solidworks Mbd Template Editor Adding Custom Properties Learn how to add custom properties to the default list manually and automatically with the custom property text file. In this video, i’ll be walking you through the custom property tab builder and show you that with just a few clicks, you can save time and streamline your project designs going forward.
